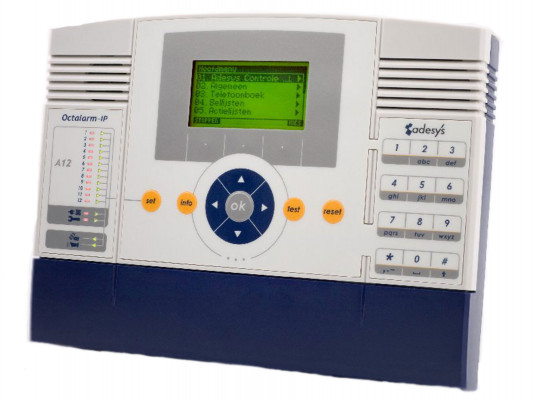

Octalarm-IP

The Octalarm-IP is an extremely reliable alarm dialler that has been used for more than 10 years in horticulture, intensive livestock farming and water management. The alarm dialler is available in 3 variants, one with a second call connection (redundant). This means that alarms arrive with high certainty.

The benefits

  1. Alerts sent as voice messages, SMS, paging and Email
  2. Alerts via analogue telephone connection (PSTN) and GSM (2-3G)
  3. VoIP possible with analogue telephone adapter (ATA)
  4. Remote setup and management with IP-prog and / or internet via standard web browser

Download Brochure

A consideration

We would like to point out that the lifespan of this dialler is limited due to changes in the telecom networks (see the knowledge article Disabling 2G and 3G network, what does this mean for my alerts?). We advise you to consider the purchase of the successor, the Octalarm-Touch.

More info about Octalarm-Touch

Octalarm-IP

Product Features

icon-safe-and-reliable Safe and reliable

  1. PSTN (analogue connection) and / or GSM versions (3G with fallback to 2G if 3G is not available)
  2. VoIP possible with analogue telephone adapter (ATA)
  3. Emergency power supply by internal NiMH battery with battery monitoring and trickle charger

icon-user-friendly User-Friendly

  1. User-replaceable battery
  2. Extensive data logger (with date and time)
  3. Can be accessed via web address and / or local company network via IP address for
    1. Remote setup and management
    2. View alarm statuses
    3. View log

icon-alerting Alert functions

  1. Alert types
    1. Fixed voice message to telephone
    2. Self-recorded message to telephone
    3. Reporting to (alpha) numerical pager or service group
    4. SMS message to mobile phone
    5. Email message
  2. Alert functions
    1. Adjustable alarm delay per entry
    2. Report delay possible with forwarding by telephone
    3. Reset option while reporting or by calling back
    4. Day, night, weekend program for alternative report numbers
    5. Local alarm by build-in alarm buzzer
    6. Notification on power failure and when battery needs to be replaced
    7. Can be combined with ARA-pro reporting system from Adésys
  3. Number of call options: 40 (with adjustable dialler per input)

icon-system-properties-and-operating-conditions System properties and operating conditions

  1. Number of inputs: 4, 8 or 12 digital inputs (depending on model)
  2. Wall mounting, dimensions 233 x 174 x 55 mm (W x H x D)
  3. Supply voltage: 90 – 245VAC 50Hz

Reliability

Companies are steadily increasing in scale, causing technical installations to become larger and more complex. The demands put on monitoring and alarm systems in the event of technical malfunctions are increasing accordingly. To guarantee the reliability of telephone alarms, 1 telephone connection is often not enough. In the variants with two call connections, the Octalarm-IP switches to the second network if the network of the first choice should fail.

Read more about achieving a reliable alert through redundancy

Easy configuration and remote control

You can set the Octalarm-IP on location by scrolling through the menu with the buttons on the alarm dialler. By linking the Octalarm-IP to the internet you can easily configure the dialler with a PC or laptop. This can be done in two ways:

  • with the configuration program IP-prog (see service/downloads for free download);
  • with IP address alarm dialler via a local company network / web browser.
  1. Considerable gain in time when programming compared to setting on the device itself
  2. Excellent overview of all functions
  3. Setting and reading the alarm dialler
  4. View log (with all events)
  5. View alarm status

Request quotation Octalarm-IP

It is only possible for companies based in the Netherlands to purchase our products online. You can request an online quote.

The Octalarm-IP alerts using spoken messages, SMS, paging or email and are supplied including a UTP cable. The different variants of the versatile alarm dialler are devided into 3 main groups:

  1. PE-version: Alarm dialler for the fixed PSTN network (VoIP possible with an analog port on a VoIP modem or ATA; analogue telephone adapter)
  2. PG-version: Redundant alarm dialler through combined PSTN (VoIP possible with an analog port on a VoIP modem or ATA; analogue telephone adapter) and GSM network (supplied with 2-3G GSM/UMTS module)
  3. GE-version: Alarm dialler for the GSM network (supplied with 2-3G GSM/UMTS module)

All main groups can be supplied with 4, 8 or 12 inputs. Please note that the Octalarm-IP cannot be expanded with more inputs afterwards. The dialler does not come with an antenna. If you require an antenna, select it from the related products.

Note: limited lifespan

As of the beginning of 2020, Dutch telecom providers started phasing out the 3G network  and 3G will no longer be provided by them from January 1, 2022. If the provider support 2G, the Octalarm-IP has an automatic fallback to 2G. However, the 2G network will expire in the Netherlands as of April 2025. We recommend you to contact your provider for clarity in your 2G and 3G delivery guarantee. Due to the loss of these networks, the lifespan of this dialler is limited.

We advise you to consider the purchase of the successor, the Octalarm-Touch. This 5th-generation Octalarm uses the latest technology to enable secure and reliable alerts using today’s (significantly changed) digital telephone networks. With Octalarm-Touch, you’re ready for the future!

Article number Description Price
IP-A04PE alarm dialler with 4 alarm inputs, 2 switchable outputs, message by spoken message, SMS, pager or Email. Incl. UTP cable € 896,00
IP-A08PE alarm dialler with 8 alarm inputs, 4 switchable outputs, message by spoken message, SMS, pager or Email. Incl. UTP cable € 1.000,00
IP-A12PE alarm dialler with 12 alarm inputs, 4 switchable outputs, message by spoken message, SMS, pager or Email. Extra built-in 3G GSM/UMTS module (delivery exclusive antenna). Incl. UTP cable € 1.228,00
IP-A04PG alarm dialler with 4 alarm inputs, 2 switchable outputs, message by spoken message, SMS, pager or Email. Extra built-in 3G GSM/UMTS module for alarm calls when the analogue telephone network is not available (delivery exclusive antenna and incl. UTP cable) € 1.252,00
IP-A08PG alarm dialler with 8 alarm inputs, 4 switchable outputs, message by spoken message, SMS, pager or Email. Extra built-in 3G GSM/UMTS module for alarm calls when the analogue telephone network is not available (delivery exclusive antenna and incl. UTP cable) € 1.355,00
IP-A12PG alarm dialler with 12 alarm inputs, 4 switchable outputs, message by spoken message, SMS, pager or Email. Extra built-in 3G GSM/UMTS module for alarm calls when the analogue telephone network is not available (delivery exclusive antenna and incl. UTP cable) € 1.483,00
IP-A04GE alarm dialler with 4 alarm inputs, 2 switchable outputs, message by spoken message, SMS, pager or Email. Extra built-in 3G GSM/UMTS module (delivery exclusive antenna and Incl. UTP cable) € 1.154,00
IP-A08GE alarm dialler with 8 alarm inputs, 4 switchable outputs, message by spoken message, SMS, pager or Email. Extra built-in 3G GSM/UMTS module (delivery exclusive antenna and incl. UTP cable) € 1.257,00
IP-A12GE alarm dialler with 12 alarm inputs, 4 switchable outputs, message by spoken message, SMS, pager or Email. Extra built-in 3G GSM/UMTS module (delivery exclusive antenna). Incl. UTP cable € 1.386,00
